Features:
- Industrial Grade for Tough Environment
- Stackable Snap-on Contact Blocks (up to 6) for Flexibility in Configuration
- Modular Design for Easy Installation and Wiring
- UL listed, CSA Certified and TUV Approved for use Worldwide
| Mounting Cut Hole: | 30mm |
| Button Type: | Flush, Round |
| Button Color: | Green, Yellow |
| Head Diameter: | 36mm |
| Operation Type: | Momentary |
| Switch Contact: | 1NO, 1NC (optional) |
| Lamp Type: | N/C |
| Lamp Voltage: | N/C |
| Terminal Type: | Finger Safe Screw |
| Contact Material: | Silver |
| Max Insulation Voltage: | 600V |
| Thermal Current: | 10A |
| Protection Rating: | IP65 |
| Operation Temperature: | -20 to 60C |
| Mechanical Life: | 1,000,000 |
| Panel Thickness: | 1 - 10mm |
| Depth Behind Panel: | 2" |

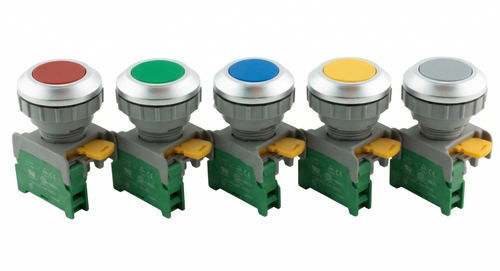

Package Includes: One 30mm Push Button Switch
